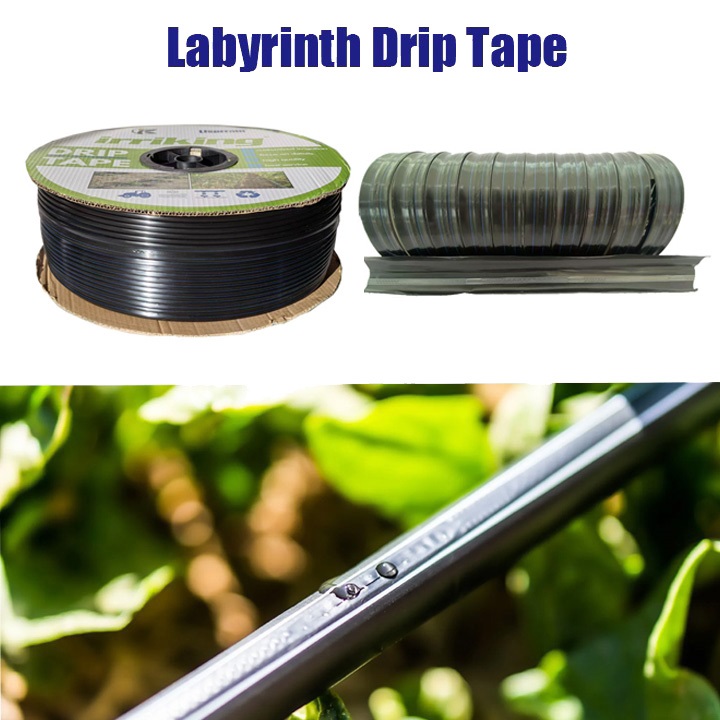

agriculture irrigation 16mm labyrinth drip tape with strip inside for water saving Irrigation Hose T Drip Tape

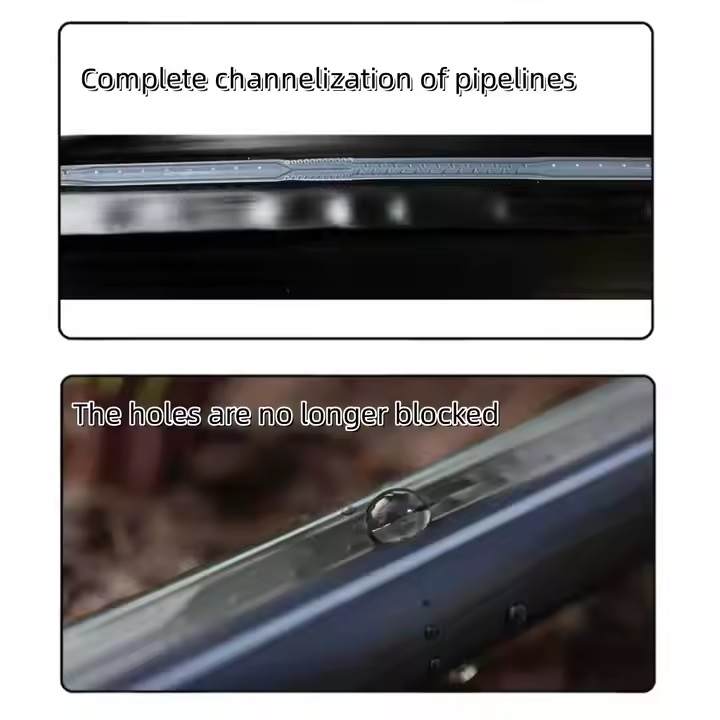

The strip drip irrigation tape uses mechanical perforation to form a gap outlet, which prevents plant roots or insects from entering the flow channel and blocking the dripper. At the same time, the strip drip irrigation tape is made by one-time extrusion welding, without seams and burrs, avoiding the possibility of pressure rupture.
In addition, the strip drip irrigation tape also has a certain pressure compensation function, which enables it to maintain the stability of flow under different pressures. Its price is not affected by the change in the distance between drippers, and the double-bar mark on the surface of the drip irrigation tape makes it easy to identify during installation.
Features:
1.The scientific design of water channel guaranteed the stable and uniformity of flow rate.
2.Equipped with filter net for dripper to prevent clogging
3.Anti-agers to prolong service time
4.Closely welded between dripper and drip pipe,good performance.
5.Exclusive continuous filtration channel keeps the debris away from the flow path and allows it to purge by flushing, ensuring high performance and extends the life of the tape.
6.Longer flow path ensures true drip flow without squirts.
Product parameters:
|
Diameter(mm) |
Wall Thickness (mm) |
Spacing(cm) |
Flow Rate(L/H) |
Working Pressure(Bar) |
Roll Lenght(m) |
|
16 |
0.15 |
10-50 |
0.85/1.0/1.5/2.0/2.5/3.0 |
0.8 |
1000/2000 |
|
16 |
0.18 |
10-50 |
0.85/1.0/1.5/2.0/2.5/3.0 |
1.0 |
1000/2000 |
|
16 |
0.2 |
10-50 |
0.85/1.0/1.5/2.0/2.5/3.0 |
1.0 |
1000/2000 |
|
16 |
0.3 |
10-50 |
0.85/1.0/1.5/2.0/2.5/3.0 |
1.5 |
1500 |
|
16 |
0.4 |
10-50 |
0.85/1.0/1.5/2.0/2.5/3.0 |
2.0 |
1000 |
|
16 |
0.6 |
10-50 |
0.85/1.0/1.5/2.0/2.5/3.0 |
2.5 |
500 |
Notes:Packed by paper plate and plastic film or customized.Double blue lines marking and special spacing can be offered.
Application scenarios:
1.Can be applied above ground. This is the most popular for backyard vegetable gardeners, nurseries, and long term crops.
2.Can be used for multiple season crops. Most popular in strawberries and general vegetable crops.
3.Can be used for seasonal crops with ideal soil conditions where tape will not be reused.
4.Used mainly by more experienced growers and larger acreage vegetable/row crop production.
5.used for short term crops in sandy soils where tape will not be reused .Recommended for the experienced grower with the ideal conditions.
