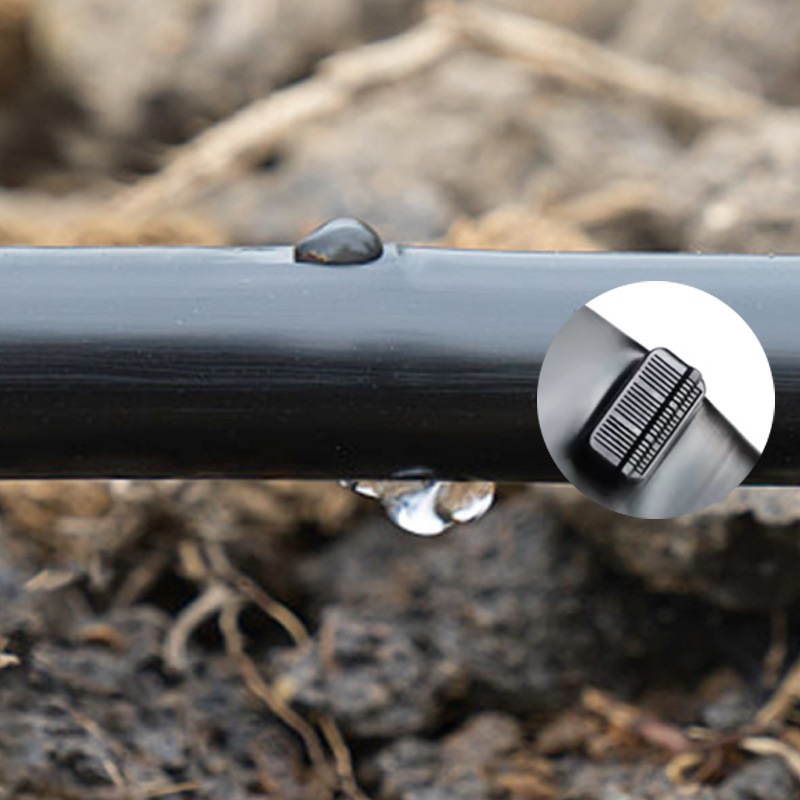

Pressure compensating drip tape is a type of drip tape that achieves pressure compensation through its built-in drippers.
Pressure compensating drip tape is a type of drip tape that achieves pressure compensation through its built-in drippers. The key lies in the special structure of the drippers, which can automatically adjust the flow rate of water according to changes in water pressure, thereby maintaining a consistent discharge flow rate under different water supply pressures.
Features:
*Embed PC emitter inside, special used for hills, mountains area.
*High efficient pressure compensating, with longer pavement length and more pressure stable work system.
*Superior PC emitter capacity, with more even water outlet flow rate.
*labyrinth passage design, high quality silicon sheet, and longer inlet filter with best capacity of anti-clogging.
*Emitter has anti-siphon function, which can prevent debris to enter into the flow passage and can be used in subsurface irrigation.
|
Diameter (mm) |
Wall Thickness(mm) |
Spacing(cm) |
Flow Rate(L/H) |
Working Pressure(Bar) |
Roll Length(m) |
|
16 |
0.40 |
20/30/40/50 |
1.0/1.6/2.0 |
1.0-1.8 |
700/800 |
|
16 |
0.60 |
30/40/50/100 |
1.0/1.6/2.0 |
1.0-2.0 |
500 |
|
16 |
0.80 |
20/30/40/50 |
1.0/1.6/2.0 |
1.0-2.2 |
500 |
|
16 |
1.0 |
20/30/40/50 |
1.0/1.6/2.0 |
1.0-2.5 |
500 |
Application scenarios:
• Irrigation of field crops
• Orchard irrigation
• Vegetable cultivation
• Horticultural cultivation
• Greenhouse and shed
• Open-air flower planting
