The labyrinth drip tape is mainly composed of a thin - walled hose and internal strips. The thin - walled hose is generally made of plastic materials such as polyethylene. It has a certain degree of flexibility and corrosion resistance, and can adapt to different terrains and laying requirements. The internal strip is a key component of the drip irrigation tape. Usually, through processes such as hot - melting, it combines with the inner wall of the pipe to form a specific flow channel. Under the action of pressure, water enters the body of the drip irrigation tape. Through the flow channel formed between the strip and the pipe body, the water flow gradually dissipates energy and slows down. Finally, water drops evenly and slowly from the drip head or the water outlet in the form of water droplets, achieving precise irrigation of the crop roots.
Labyrinth Drip Tape

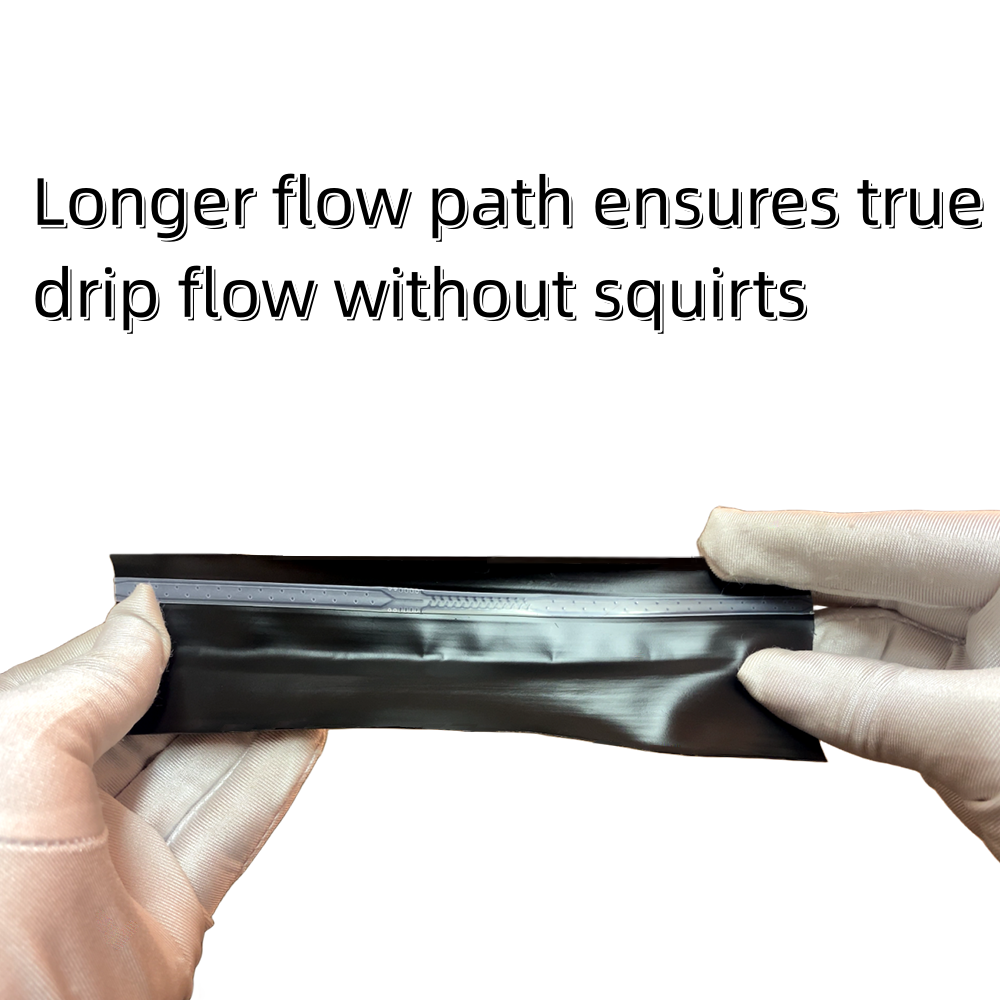

The labyrinth drip tape is mainly composed of a thin - walled hose and internal strips. The thin - walled hose is generally made of plastic materials such as polyethylene. It has a certain degree of flexibility and corrosion resistance, and can adapt to different terrains and laying requirements. The internal strip is a key component of the drip irrigation tape. Usually, through processes such as hot - melting, it combines with the inner wall of the pipe to form a specific flow channel.
Under the action of pressure, water enters the body of the drip irrigation tape. Through the flow channel formed between the strip and the pipe body, the water flow gradually dissipates energy and slows down. Finally, water drops evenly and slowly from the drip head or the water outlet in the form of water droplets, achieving precise irrigation of the crop roots.
Specifications:
|
Diameter (mm) |
Wall Thickness(mm) |
Spacing (cm) |
Flow Rate(L/H) |
Working Pressure(Bar) |
Roll Length(m) |
|
16 |
0.15 |
10-70 |
0.7-2.8 |
0.8 |
2000 |
|
16 |
0.18
|
10-70 |
0.7-2.8 |
1.0 |
2000 |
|
16 |
0.20 |
10-70 |
0.7-2.8
|
1.0 |
2000 |
|
16 |
0.30 |
10-70 |
0.7-2.8 |
1.5 |
1500 |
|
16 |
0.40 |
10-70 |
0.7-2.8 |
2.0 |
1000 |
Application:
• Irrigation of field crops
• Orchard irrigation
• Vegetable cultivation
• Horticultural cultivation
• Greenhouse and shed
• Open-air flower planting
