The cylindrical drip hose is mainly composed of two parts: the hose body and the dripper. The hose body is usually made of plastic (such as polyethylene). This material has good corrosion resistance and flexibility, ensuring that the hose can work normally under different field environments and laying conditions. The dripper part is the key to achieving precise irrigation. It is distributed at certain intervals on the hose body, and its internal structure is relatively sophisticated.

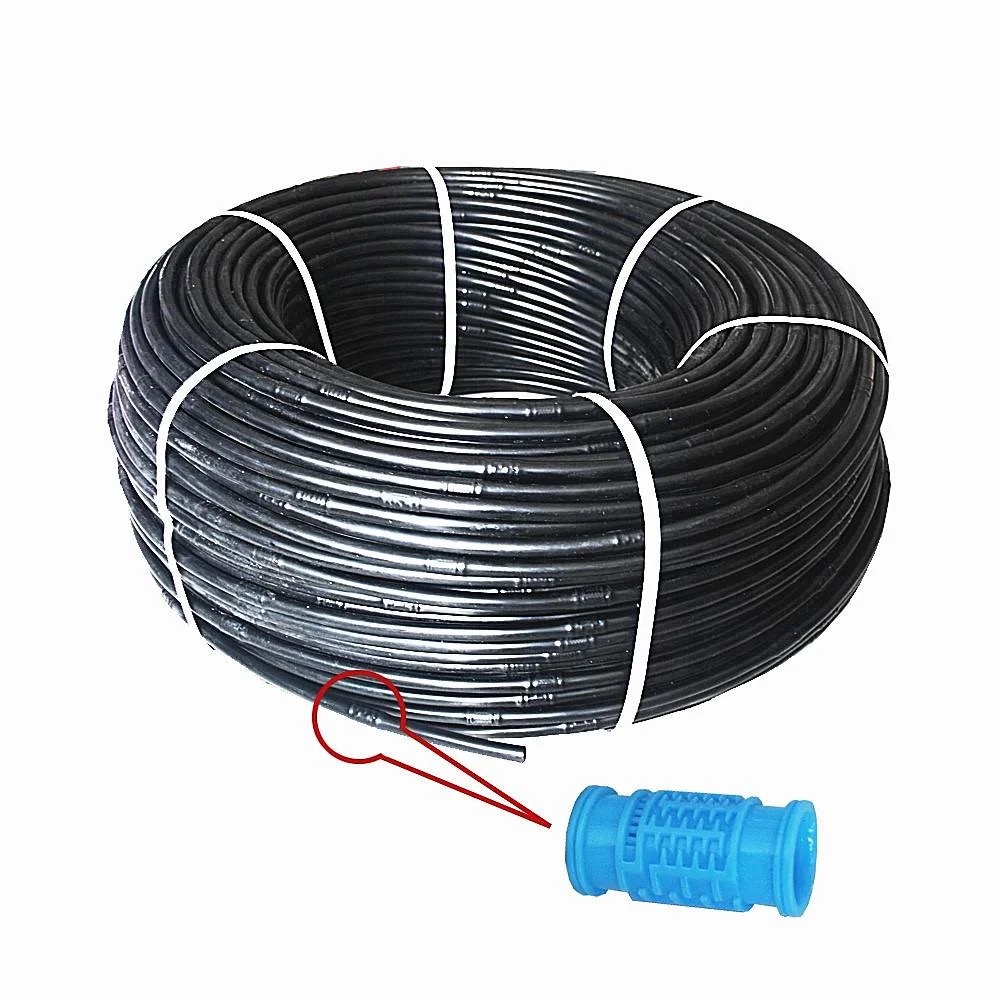

Cylindrical Drip Hose
The cylindrical drip hose is mainly composed of two parts: the hose body and the dripper. The hose body is usually made of plastic (such as polyethylene). This material has good corrosion resistance and flexibility, ensuring that the hose can work normally under different field environments and laying conditions. The dripper part is the key to achieving precise irrigation. It is distributed at certain intervals on the hose body, and its internal structure is relatively sophisticated.
Water is transported into the body of the cylindrical drip hose under the action of pressure. When the water flow reaches the dripper, the dripper will control the water flow. There are special flow channel designs inside the dripper, such as labyrinth - type flow channels or small - hole - type structures. These flow channels can gradually reduce the energy of the water flow, disperse the water flow into uniform water droplets, and then the water droplets drip out slowly and steadily from the outlet of the dripper, accurately delivering water to the soil around the roots of crops. For example, the labyrinth - type flow channel is like a complex small - scale channel network. The water flow undergoes multiple turns and decelerations in it, thus achieving the uniform dripping of water droplets.
Products Features：
1.Compact cylindrical dripper design with double water inlet and outlet ensures high clog resistance and improved durability.
2.Wider channel flushing enhanced ability of self-cleaning.
3.Wide range of wall thicknesses:0.6-1.2mm.
4.Drippers are easily visible.
|
Diameter (mm) |
Wall Thickness (mm) |
Spacing (cm) |
Flow Rate(L/H) |
Working Pressure(Bar) |
Roll Length(m) |
|
16 |
0.60 |
15-100 |
2.0/3.0/4.0 |
1.0-2.0 |
500 |
|
16 |
0.70 |
15-100 |
2.0/3.0/4.0 |
1.0-2.0 |
500 |
|
16 |
0.80 |
15-100 |
2.0/3.0/4.0 |
1.2-2.5 |
500 |
|
16 |
0.90 |
15-100 |
2.0/3.0/4.0 |
1.2-2.5 |
500 |
|
16 |
1.00 |
15-100 |
2.0/3.0/4.0 |
1.5-3.0 |
500 |
|
16 |
1.10 |
15-100 |
2.0/3.0/4.0 |
1.5-3.0 |
500 |
|
16 |
1.20 |
15-100 |
2.0/3.0/4.0 |
1.5-3.0 |
500 |
The details:
Diameter: 16mm
Thickness:0.8mm
Dripper space:20cm
Flowrate:2lph
Material:recycled material
Roll length:300m,500m or customized.
Packing: plastic film
Logo print: free of charge for one full 40” hc container order
OEM/ODM:yes
Factory location: Wen’an county, Langfang city, Hebei province of China
Seaport: Tianjin seaport of China

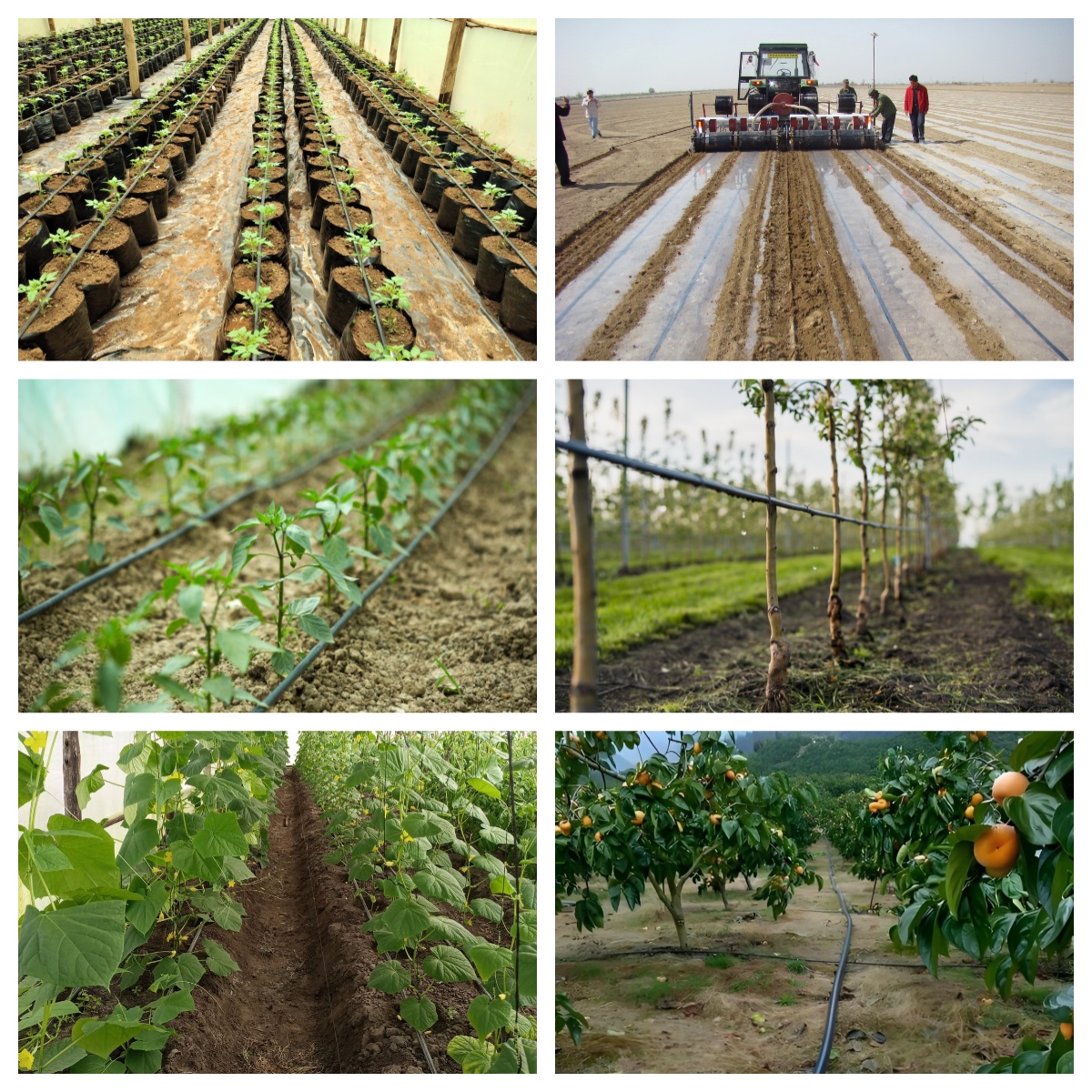

Application:
• Irrigation of field crops
• Orchard irrigation
• Vegetable cultivation
• Horticultural cultivation
• Greenhouse and shed
• Open-air flower planting

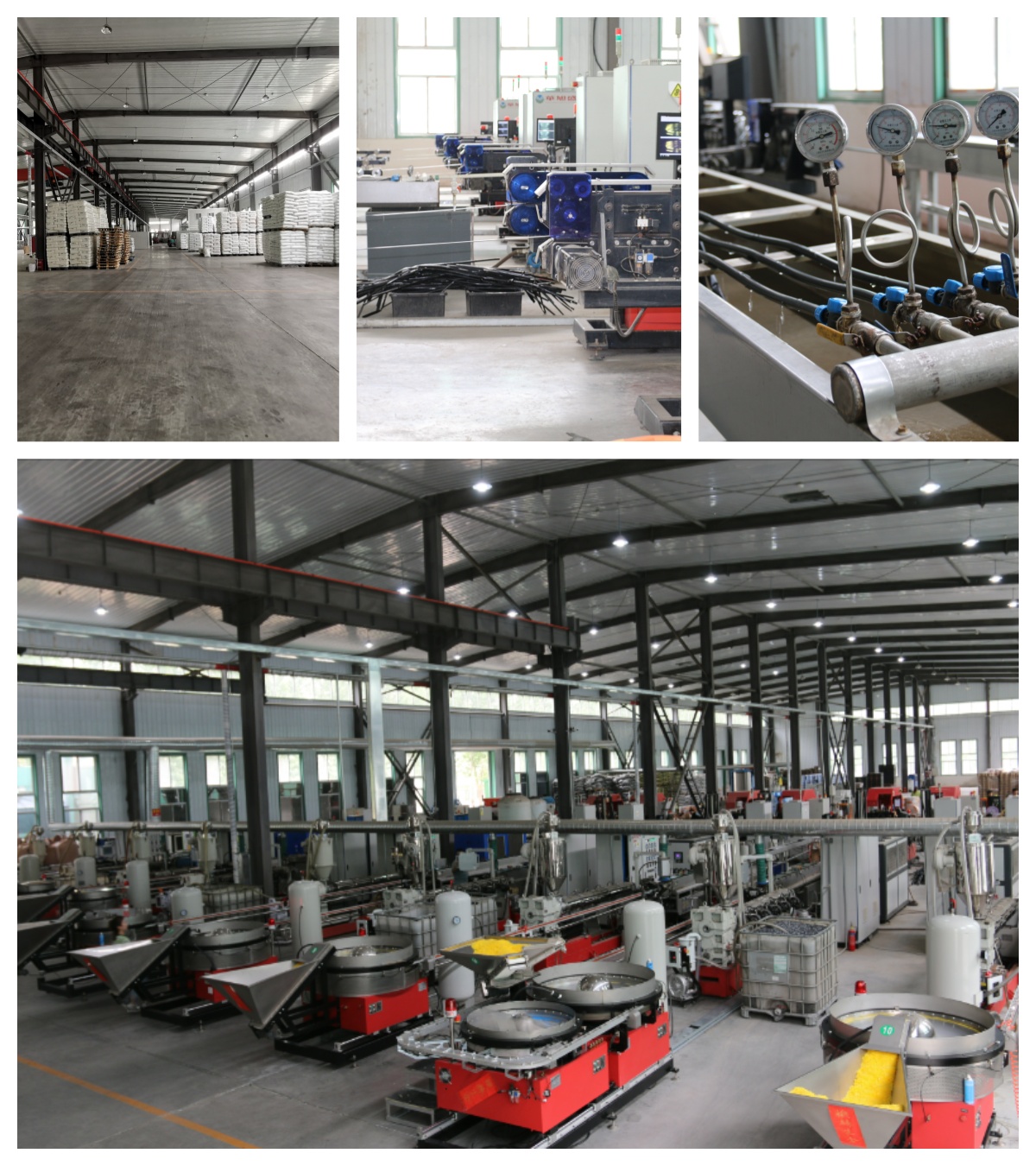

Our factory:
Langfang Springrain Water Saving Science &Technology Co.,Ltd. was established in 2016. It has Rich experience for production and sales, excellent product quality, and reliable service make us have earned the trust of all our clients. It is one of the most professional irrigation product manufacturers in China and is committed to providing irrigation product solutions for customers all over the world. We have been recognized by global customers with first-class product quality and good reputation in the international market.
Our company is located in Xinqiao Environmental Protection Technology Industrial Park, Wen'an County Economic Development Zone of Langfang City, it is conveniently located 50 kilometers away from Beijing Airport (Beijing Daxing Airport) and 85 kilometers away from Tianjin City (Tianjin Airport and Port). For customers, this means easy to visit and delivery goods by sea. Welcome old and new customers to visit and seek cooperation.
FAQ
1. Who are we?
We are a ISO satisfied with more than 15 years experience agriculture irrigation products manufacturer in China, we can offer full size irrigation tapes with accessories.
2. Our main market:
Southeast Asia(25.00%),North America(15.00%),South America(15.00%),Africa(10.00%),Oceania(2.00%),Eastern Europe(1.00%),Mid East(1.00%),Eastern Asia(1.00%).
3. Our deliver time:
Sample:1-7 days;
LCL order: 8-15 days;
FCL order: 15-25 days;
OEM & ODM order: on a case-by-case basis.
4. Terms of payment:
LCL order: 100% alibaba payment link or T/T to save transaction cost.
FCL order: 30% deposit against production and 70% against B/L copy.
5. As for the free sample:
yes, we only need you to share the freight.
6. As for our after sales service:
You need to send us unqualified products quantity, photos/videos and invoice number to check the problem. If necessary, you need to send back some representative samples to us. Once the problem been confirmed by our after-sale team, we will give you a satisfied solution.
